M3 Shoulder Spring Screws 34mm Zinc Plated for Automation
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | guanbiao |
| Sertifikasi: | ISO9001 |
| Nomor model: | M3 |
| Dokumen: | guanbiao hardware PPT(new)P...DF.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 50000 |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kantong plastik + karton + palet |
| Waktu pengiriman: | 15-20 hari kerja |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 5000000 |
|
Informasi Detail |
|||
| aplikasi produk: | Otomasi & Robotika | Waktu tunggu: | 15 ~ 20 hari kerja |
|---|---|---|---|
| FINSH: | Pelapisan seng | Bahan: | Baja karbon (grade 4.8 atau 8.8 opsional) |
| Toleran: | +/- 0,05mm | Spesifikasi: | Iso |
| Kuantitas: | Paket 1000 | Sampel: | Sampel gratis |
| Total panjang: | 34mm | Jenis Thread: | Kepala bahu |
| Kapasitas muatan: | Sedang | Diameter musim semi: | 3mm |
| Jenis drive: | Phillips | ||
| Menyoroti: | M3 shoulder spring screws 34mm,zinc plated automation screws,spring loaded screw for automation |
||
Deskripsi Produk

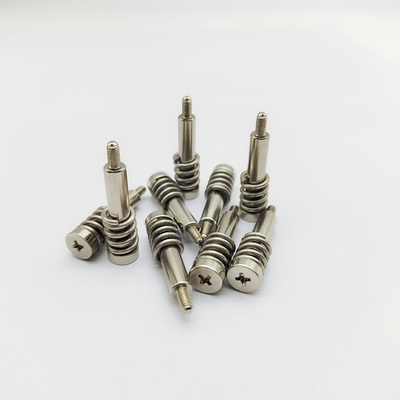

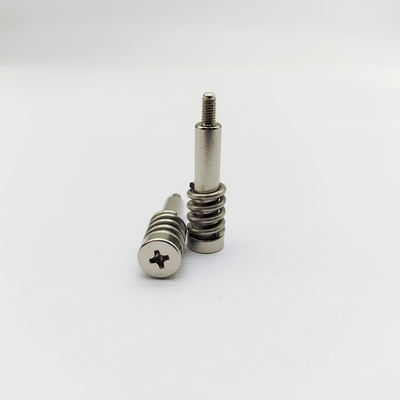

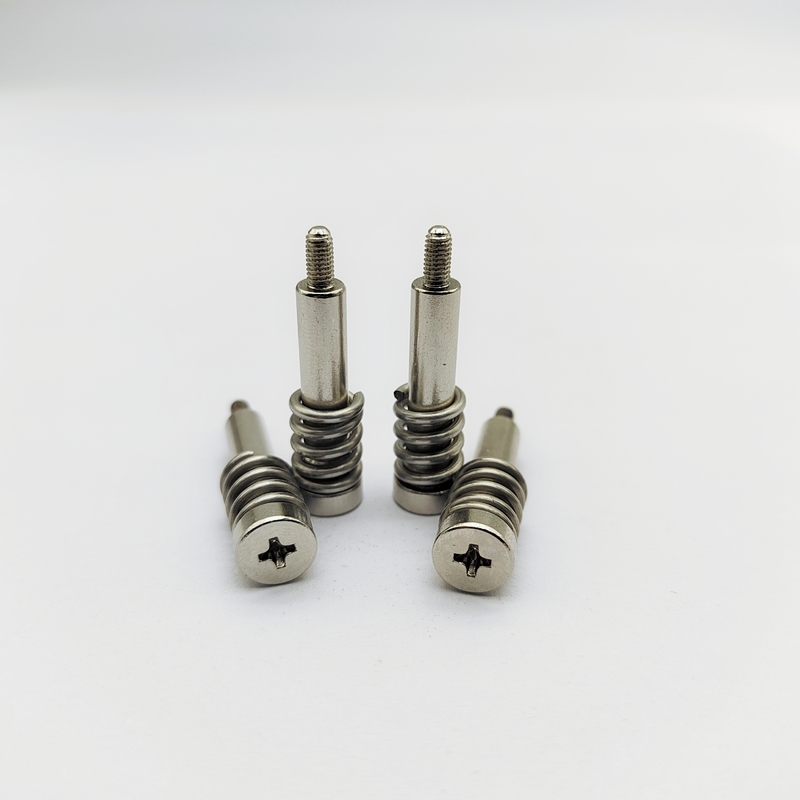

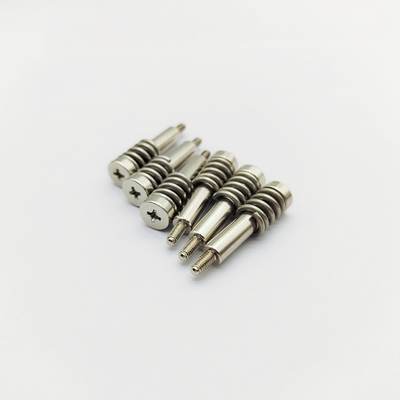

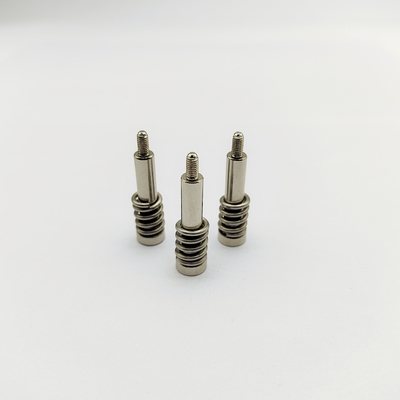

M3 Shoulder Spring Screws - Shoulder Head - Phillips Drive - Pre-assembled Spring - Zinc Plated - for Floating Panels
Our M3 Shoulder Head Spring Screws are specialized fasteners designed for applications requiring precise alignment, floating movement, and vibration resistance. Unlike standard screws, they feature a smooth, precision-ground shoulder beneath the head and a pre-assembled pressure spring. This unique design allows the screw to act as a pivot or guide, while the spring maintains constant pressure, preventing loosening. Made from carbon steel and finished with zinc plating, they are a cost-effective solution for automation, electronics, and machinery.
Technical Specifications
| Head Type | Shoulder Head |
|---|---|
| Head Diameter | 6.0mm (Standard for M3) |
| Shoulder Diameter | ~3.0mm (Smooth, unthreaded, acts as a guide) |
| Shoulder Length | ~22mm |
| Drive Type | Phillips (PH2 size) |
| Total Length (L) | 34 mm (Fully Customizable) |
| Thread Length (L_t) | 6 mm (Fully Customizable) |
| Thread Diameter | M3 x 0.5mm |
| Spring | Pre-assembled on the shoulder (Carbon Steel, Zinc Plated) |
| Material | Carbon Steel (Grade 4.8 or 8.8 optional) |
| Surface Treatment | Zinc Plating |
| Customization | All dimensions, spring force, plating |
Primary Uses & Applications
- Printers & Scanners: Guiding and securing moving print heads, lids, and paper trays with a floating fit.
- Automation & Robotics: Pivoting joints, guiding linear actuators, and securing sensors where slight misalignment must be accommodated.
- Electronics Enclosures: Securing floating panels, hinged doors, and access covers on servers, audio equipment, and instruments.
- Automotive Interiors: Attaching trim panels, cup holders, and compartments that require a rattle-free, floating movement.
- General Machinery: Fastening guards, covers, and mechanisms that need to be easily removed and aligned without binding.
How to Use
- Preparation: The spring is pre-assembled. Identify the smooth shoulder and the threaded end.
- Insertion: Insert the smooth shoulder through the clearance hole in the top component. This hole should be a close fit to the shoulder diameter (~3.0mm) to guide the screw. The thread will protrude through.
- Alignment: The shoulder will align the components. The spring will be compressed between the screw head and the top component's surface.
- Driving: Using a PH2 Phillips screwdriver, drive the threaded end into the receiving threaded hole or a nut on the other side.
- Tightening: Tighten until the desired clamping force is achieved. The long shoulder allows the top component to "float" or pivot slightly even when the screw is tight. The spring maintains tension. Do not over-tighten.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions and helping solve fastener supply chain challenges.
- Precise production equipment with all imported machinery from Taiwan to produce precision screws and hardware accessories. Free sample testing available for compatibility verification.
- Complete management system with multiple strict quality control checks for every batch of products before leaving the factory.
- Dedicated account management for seamless collaboration and system-supporting services to guarantee peace of mind.
Support and Services
If you require technical support or have any questions regarding our Spring Screws, our team of knowledgeable professionals is here to assist you. We provide comprehensive support services including:
- Selection advice to ensure you have the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Step-by-step installation guides and troubleshooting assistance
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our Spring Screws are packaged with care to ensure they arrive in perfect condition:
- Securely held in durable, moisture-resistant plastic bags inside sturdy cardboard boxes
- Cushioned with packing materials to prevent movement during transit
- Clear labeling with product information for easy identification
- Larger orders palletized, shrink-wrapped, and strapped securely
- Reliable courier services with tracking information provided
Note: Our factory accepts customized drawings. Please contact us if you need to highlight specific certifications or other parameters.
