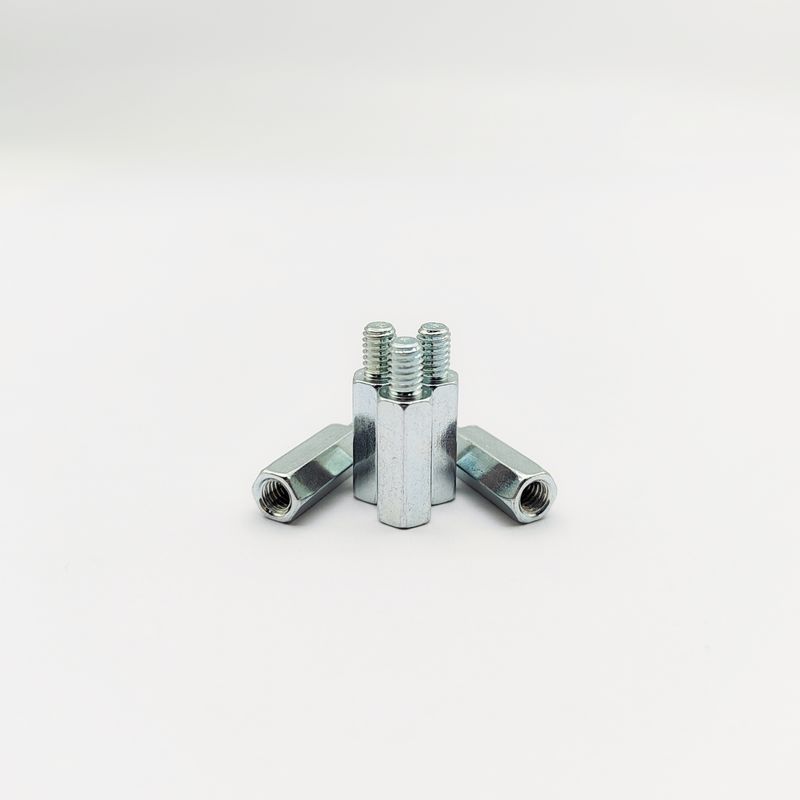

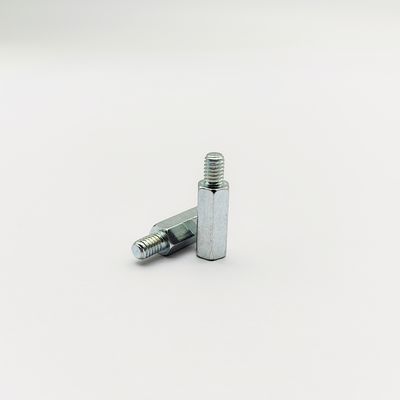

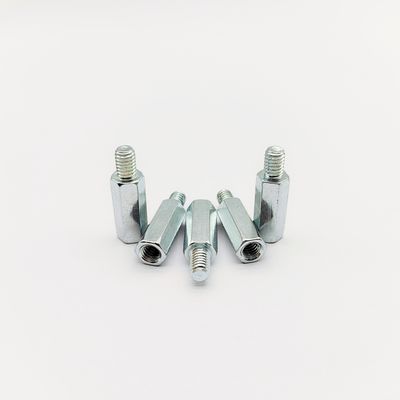

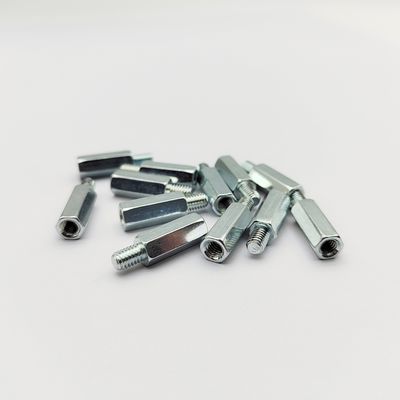

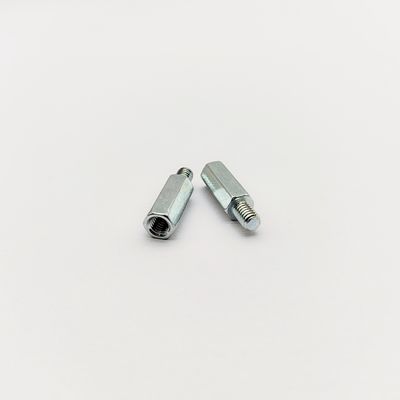

Stainless Steel Hex Standoff Screw M3-M6 PCB Spacer Blue-Zinc Plated
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | guanbiao |
| Sertifikasi: | ISO9001 |
| Nomor model: | Dapat disesuaikan |
| Dokumen: | guanbiao hardware PPT(new)P...DF.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 50000 |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kantong plastik + karton + palet |
| Waktu pengiriman: | 15-20 hari kerja |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 5000000 |
|
Informasi Detail |
|||
| aplikasi produk: | PCB Stacking | Benang: | Pria-Wanita |
|---|---|---|---|
| Waktu tunggu: | 15 ~ 20 hari kerja | FINSH: | Pelapisan seng biru-putih ** (hasil akhir yang halus) |
| Bahan: | Baja tahan karat | Toleran: | +/- 0,05mm |
| Fitur: | Ujung berulir pria-wanita | Kekuatan: | Tinggi |
| Resistensi korosi: | Tinggi | Spesifikasi: | Iso |
| Kuantitas: | Paket 1000 | Jenis: | Sekrup Penghenti |
| Sampel: | Sampel gratis | Mudah dipasang: | Ya |
| Total panjang: | 6mm hingga 40mm | ||
| Menyoroti: | stainless steel hex standoff screws,M3-M6 PCB spacer screws,blue-zinc plated standoff screws |
||
Deskripsi Produk
Male-Female Hex Standoff Screw - Blue-Zinc Plated - Stainless Steel - PCB Spacer - M3 to M6 Sizes
Product Attributes
| Attribute | Value |
|---|---|
| Product Application | PCB Stacking |
| Thread | Male-female |
| Lead Time | 15~20 working days |
| Finish | Blue-White Zinc Plating (Smooth Finish) |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Features | Male-Female Threaded Ends |
| Strength | High |
| Corrosion Resistance | High |
| Specification | ISO |
| Quantity | Pack of 1000 |
| Type | Standoff Screws |
| Samples | Free samples available |
| Easy To Install | Yes |
| Total Length | 6mm to 40mm |
Product Description
Our Male-Female Hex Standoff Screws are versatile threaded spacers designed for precise board-level spacing and stacking in electronic assemblies. Featuring a hexagonal body for easy installation with a standard wrench, these standoffs have male threads on one end and female threads on the other, enabling flexible and secure connections between components.
Manufactured from stainless steel and finished with a smooth blue-white zinc plating, they offer reliable corrosion protection for general indoor use at a cost-effective price point. Perfect for organizing and elevating printed circuit boards (PCBs).
Technical Specifications
| Specification | Details |
|---|---|
| Thread Diameter | M3, M4, M5, M6 (e.g., M4x0.7) |
| Hex Size (AF) | M3: 5mm; M4: 6mm; M5: 8mm; M6: 10mm |
| Total Length (L) | 6mm to 40mm (e.g., 15mm for H6-M4x15+6) |
| Male Thread Length (L_m) | Customizable (e.g., 6mm for H6-M4x15+6) |
| Female Thread Depth (L_f) | Customizable (L - L_m = e.g., 9mm for H6-M4x15+6) |
| Material | Stainless Steel |
| Surface Treatment | Blue-White Zinc Plating (Smooth Finish) |
| Key Feature | Male-Female Threaded Ends |
| Customization | Custom L, L_m, L_f, thread types |
Primary Uses & Applications
- PCB Stacking: Creating multiple layers of printed circuit boards (PCBs) in servers, routers, and switches.
- Component Spacing: Providing precise space between boards and chassis for airflow, component clearance, and heat dissipation.
- Equipment Mounting: Securing modules, cards, and drives within computers, industrial controls, and test instruments.
- Consumer Electronics: Used inside appliances, gaming consoles, and audio/video equipment for internal mounting.
- General Enclosure Assembly: Spacing and connecting panels and components in various electronic enclosures.
How to Use
- Identify Ends: Determine the male-threaded end and the female-threaded end.
- Install Male Thread: Screw the male thread into a pre-tapped hole in the chassis, base PCB, or a threaded insert. Use a hex wrench of the correct size to tighten securely.
- Stack Components: Place the board or component that needs to be spaced over the installed standoff.
- Secure Assembly: Insert a machine screw through the component and into the female thread of the standoff.
- (Optional) Stacking: For additional height, another standoff can be screwed into the female thread of the first one.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience
- Precise production equipment with imported machinery from Taiwan
- Complete management system with multiple quality checks for each batch
- Dedicated account management for seamless collaboration
Support and Services
Our team provides comprehensive support services for all aspects of our hex standoff screws, including:
- Selection advice for the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Troubleshooting assistance for any issues
- Maintenance tips and best practices
Packing and Shipping
- Packaged in durable, moisture-resistant plastic bags within sturdy cardboard boxes
- Larger orders palletized, shrink-wrapped, and strapped securely
- Shipped via reliable courier services with tracking information provided
Our factory accepts customized drawings. Contact us to discuss specific requirements or certifications needed for your project.
