Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | guanbiao |
| Sertifikasi: | ISO, GB, BS, DIN, ANSI,JIS |
| Nomor model: | 4.9*10.5 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 50000 pcs |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kantong plastik 1 kotak kecil + karton luar + palet |
| Waktu pengiriman: | 10-15 hari kerja |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 100000 Pcs/Hari |
|
Informasi Detail |
|||
| Bahan: | Baja tahan karat: 302.304.316 | Proses produksi: | Pos dingin, penempaan dingin |
|---|---|---|---|
| Permukaan akhir/perawatan: | pemolesan, pasivasi | Ukuran: | 4.9*10.5 |
| Jenis Benang: | Benang mesin | Paket: | Kotak kecil, kotak warna kecil, karton ekspor, dan memakai palet kayu yang kuat |
| Single: | 3,7g | ||
Deskripsi Produk

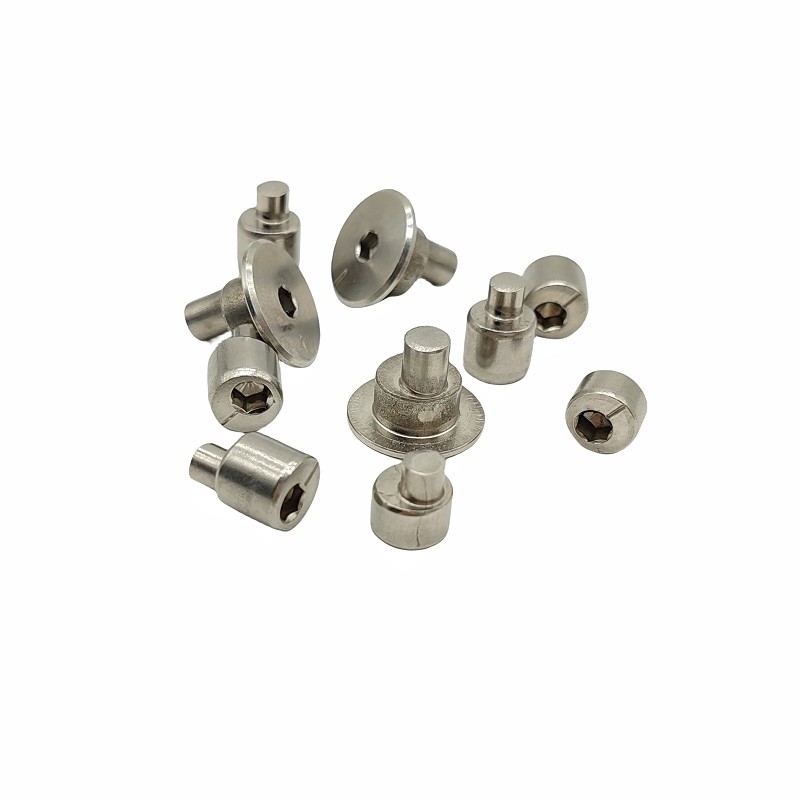

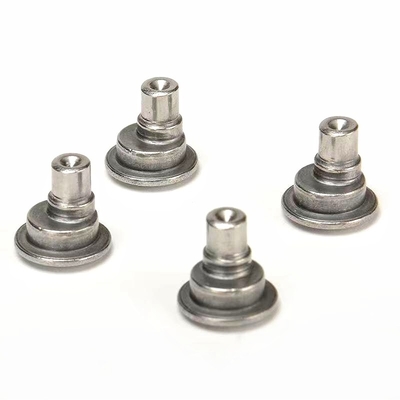

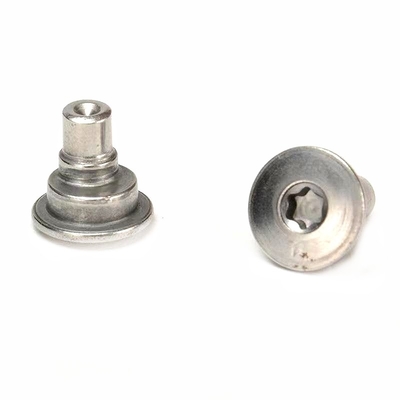

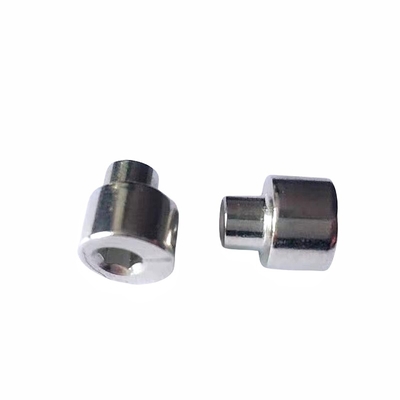

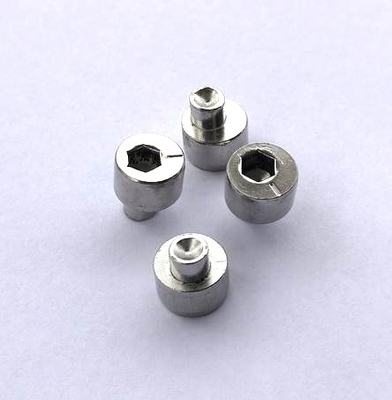

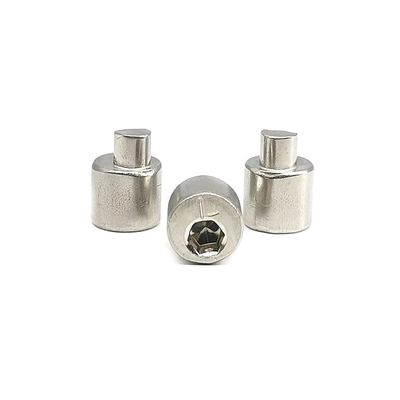

Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Precision Eccentric Locking Shafts for Smart Locks & Sliding Windows
We manufacture high-performance cold-formed eccentric locking shafts designed for smart locks and thermal break sliding windows, ensuring secure and smooth operation. Made from carbon steel (high strength) or stainless steel (corrosion-resistant), our shafts feature precise eccentricity for reliable locking mechanisms. We support full customization based on your drawings or samples, ensuring perfect compatibility with your hardware systems.
✅ Key Features:
✔ Optimized for Smart Locks & Windows – Ensures smooth engagement and long-term durability.
✔ Cold Forming Technology – Enhances mechanical strength (+25% vs. machined shafts).
✔ Corrosion-Resistant Options – Stainless steel (304/316) for outdoor & humid environments.
✔ Custom Eccentricity & Dimensions – Tailored to fit your lock or window mechanism.
✔ Fast Prototyping – Samples ready in 10-15 days after drawing approval.
Product parameters
| Specification | Material Options | Surface Treatment | Remarks |
|---|---|---|---|
| Production Process | Cold Forming | – | Enhances structural integrity |
| Standard Diameter | 1.0mm – 20mm (±0.05mm) | Custom diameters available | |
| Length Range | 2.0mm – 300mm (±0.1mm) | Extended lengths on request | |
| Material Grades | • Carbon Steel: SC435/10B21/20MnB4 • Stainless Steel: 302/304/316 |
Other alloys (e.g., alloy steel) optional | |
| Hardness (HRC) | Carbon Steel: 28-32 Stainless: 20-25 |
Adjustable per application needs | |
| Surface Finish | – | Carbon Steel: • Zinc plating (8-12μm) • Black oxide • Phosphating • Electro-galvanizing Stainless Steel: • Passivation • Electro-polishing • Sandblasting |
RoHS compliant options available |
| Eccentricity Tolerance | ±0.03mm | – | Tighter tolerances achievable |
| Customization | Accept OEM drawings & samples | – | MOQ: 50,000 pcs Standard lead time: 30 days |
(Applications)
